Why Choose Anker Prime Thunderbolt 5 Docking Station (14-in-1, 8K)
The Anker Prime is a high-performance Thunderbolt 5 docking station designed for professionals who need seamless connectivity and desktop expansion. With 14 versatile ports—including USB-C, USB-A, HDMI 2.1, and DisplayPort 2.1—it supports stunning 8K visuals and works with both Windows and macOS (15 or later). Built-in power delivery, active cooling, and LED lighting help keep your setup efficient and clutter-free.
As a premium Thunderbolt 5 docking station, it connects multiple high-performance devices and monitors through one compact hub. Whether you're upgrading your workstation or streamlining your creative workflow, this Thunderbolt 5 docking station delivers unmatched speed, stability, and versatility.

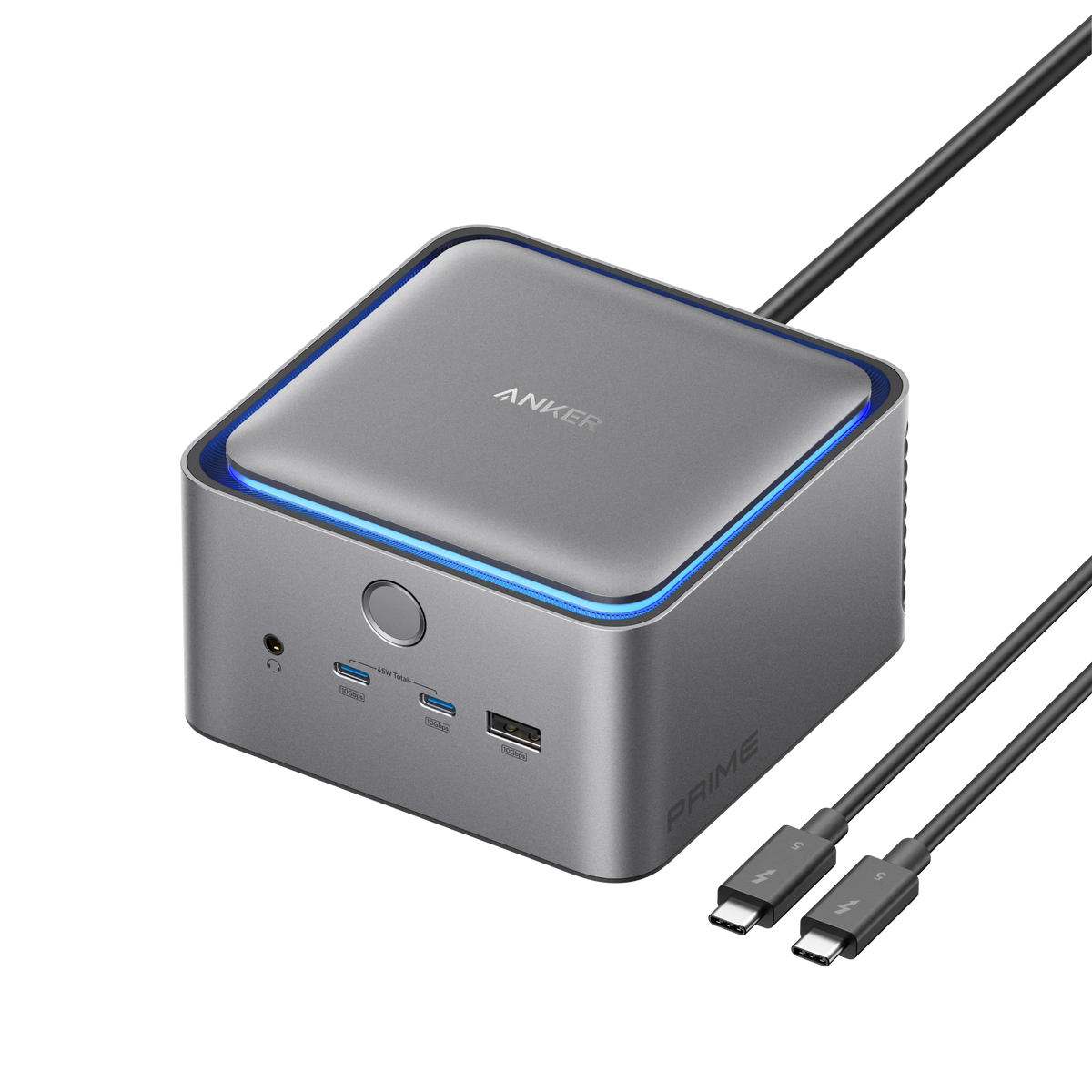

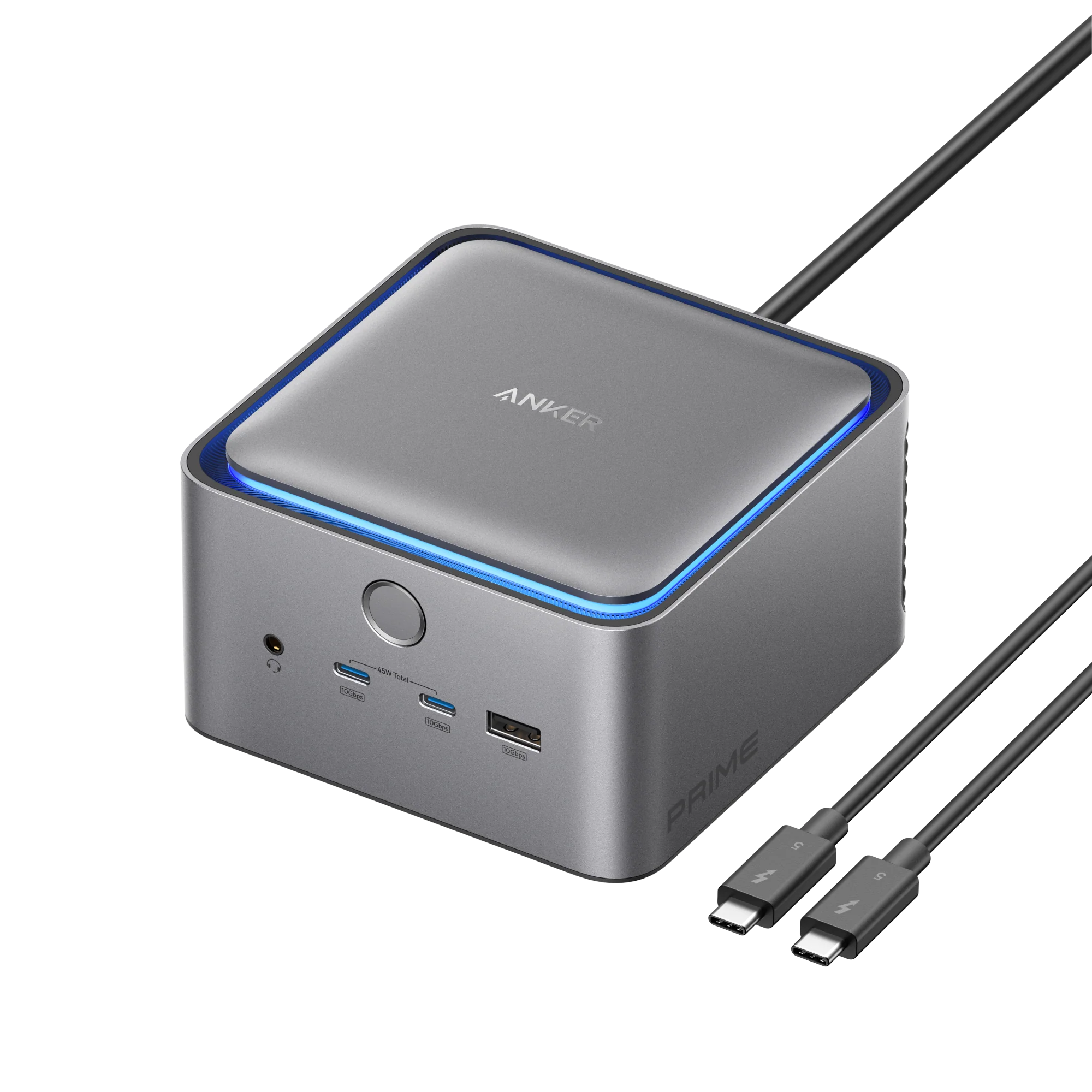

Model Number: A83B5Anker Prime Docking Station (14-in-1, 8K, Thunderbolt 5)
Supreme Desktop Expansion for Peak Performance
14 Ports, Clear Displays
Features 14 versatile ports including USB-C, USB-A, HDMI 2.1 or DP 2.1, this docking station offers pristine display options for both Windows and Mac.

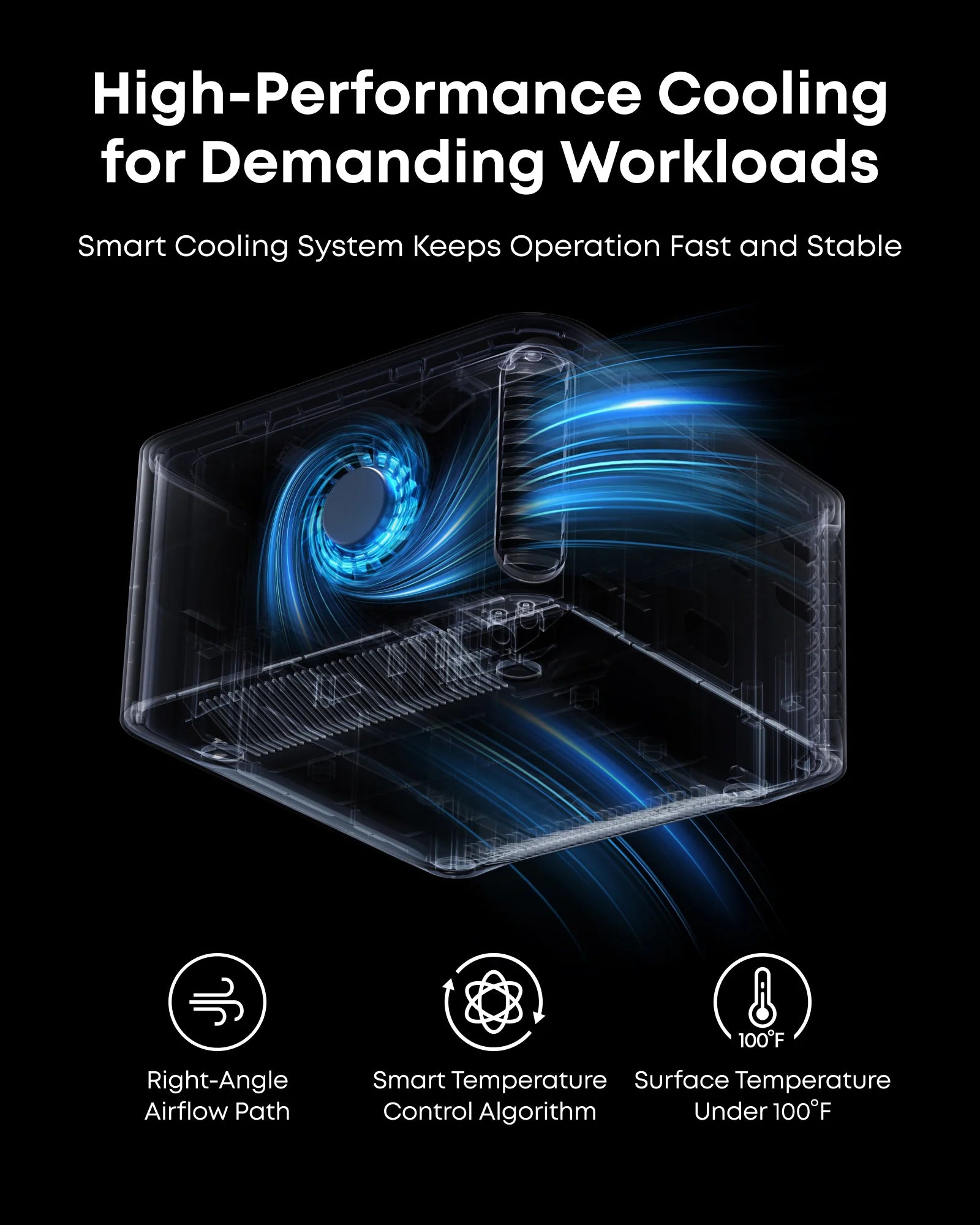

Cool Dock with LED Light
Transform your workspace with interactive blue LED lighting and a powerful cooling system, designed to maintain optimal performance.
Clean Desk Solution
Achieve a clean and organized desk with the all-in-one docking station, equipped with built-in power capabilities.
Connect All Devices
Ideal for the modern professional, this dock streamlines connectivity for a variety of devices with one compact solution.
Compatibility
System Types: Windows 10 / 11, macOS 15 or Later
Host Devices: Thunderbolt 5 / 4 Laptops
Note: This dock is not compatible with Thunderbolt 3 laptops or monitors—including those with Windows or Intel-based MacBooks—and does not support ChromeOS or Linux systems.
1. The HDMI 2.1 port and DisplayPort 2.1 port cannot be used simultaneously.
2. The front USB-C ports support charging and data transfer but do not support video output.3. Windows laptops with USB-C ports that support DisplayPort Alt Mode can only connect to one external monitor. Apple Silicon MacBooks with M1 / M2 / M3 Standard chips support only one external display via Thunderbolt. MacBooks with M1 / M2 / M3 Pro or Max chips, and all M4 models, support dual displays. M4 MacBooks with Thunderbolt 5 do not support three displays over a single Thunderbolt 5 connection.4. This dock supports triple display via two Thunderbolt downstream ports and one HDMI or DP port. However, whether triple display can be achieved depends on your laptop's specifications. Very few laptops are capable of supporting triple display with this dock. Based on our testing, only the Razer Blade 18 Gaming Laptop with NVIDIA GeForce RTX 4090 successfully supports triple display. We will continue to update the list as more compatible devices become available.5. For MacBook (M Pro-series), connect the standard monitor before the high refresh rate monitor. Otherwise, the second display may not be recognized, especially after sleep.6. This dock does not support dual 5K Thunderbolt 3 monitors or a combination of a 5K Thunderbolt 3 monitor and a Thunderbolt 4 monitor in screen mirroring mode. For example, LG UltraFine 5K and Apple Studio Display are not supported in such configurations.
System Dependencies Notes
1. The minimum macOS version required to use this Thunderbolt 5 dock is macOS 15 or later.
2. MacBooks with Apple Silicon chips do not support external GPUs through any docking station. This is a system-level limitation that prevents macOS from recognizing or using an external GPU, even if it is physically connected via a dock.
3. If your laptop uses an 11th Gen Intel processor, please ensure that "Thunderbolt Technology Support" is enabled in the BIOS to maintain optimal performance. Also, confirm that the Thunderbolt controller NVM firmware version is 48.1 or higher.
Cable Guidelines
1. Use only the included Thunderbolt 5 cable or certified Thunderbolt 5 cables. Using uncertified or incompatible cables may cause incompatibility issues.
Specifications
Dimensions: 4.6 × 4.6 × 3.0 in / 116 × 116 × 75 mm
Weight: 38 oz / 1,086 g

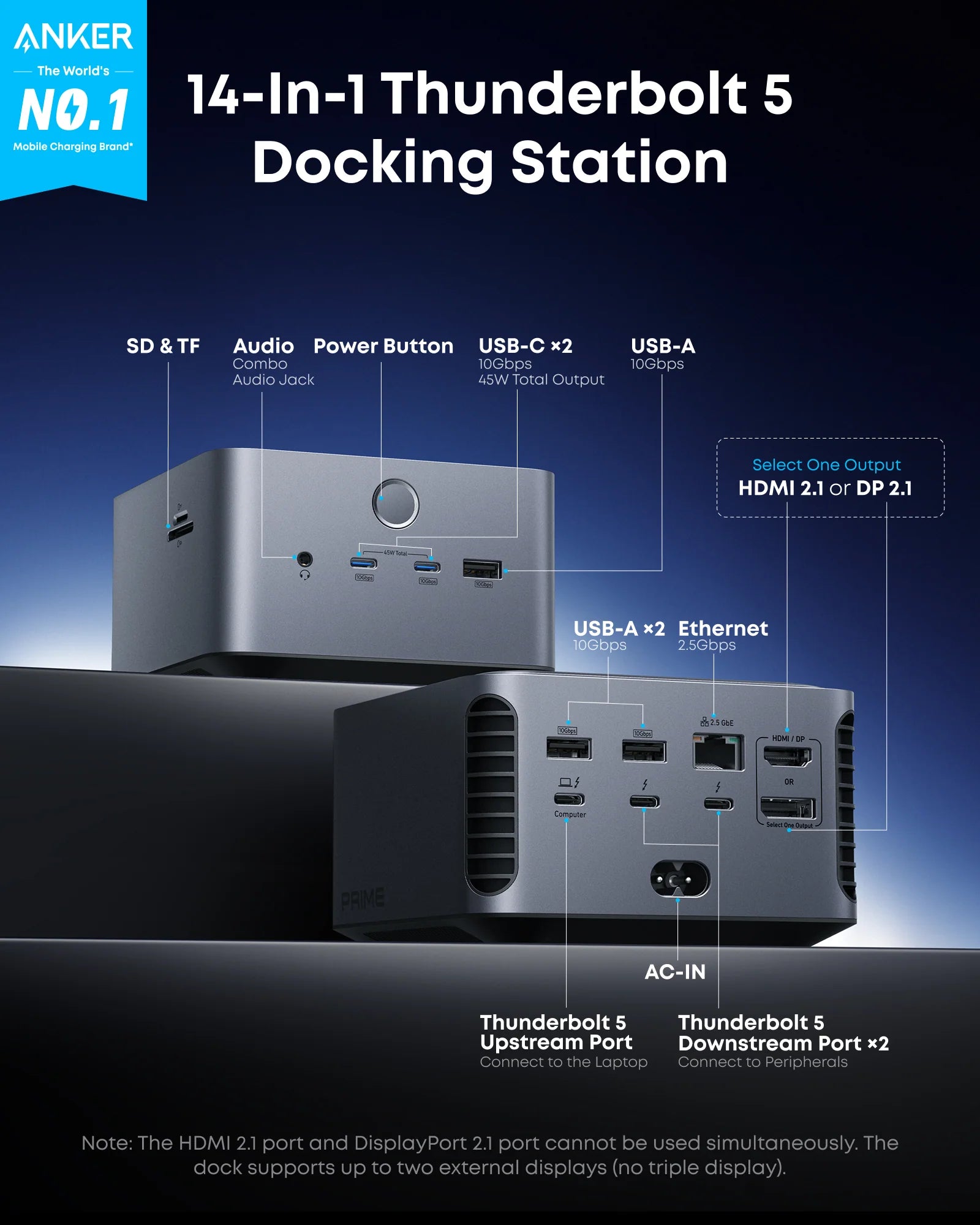

14-in-1 Thunderbolt 5 Dock
Equipped with a Thunderbolt 5 upstream port, two Thunderbolt 5 downstream ports, two USB-C ports, three USB-A ports, SD and TF card readers, an AC input, a 2.5Gbps Ethernet port, an audio jack, and an HDMI 2.1 or DisplayPort 2.1 port. It also includes an advanced active cooling system for optimal performance even under full load, preventing overheating.

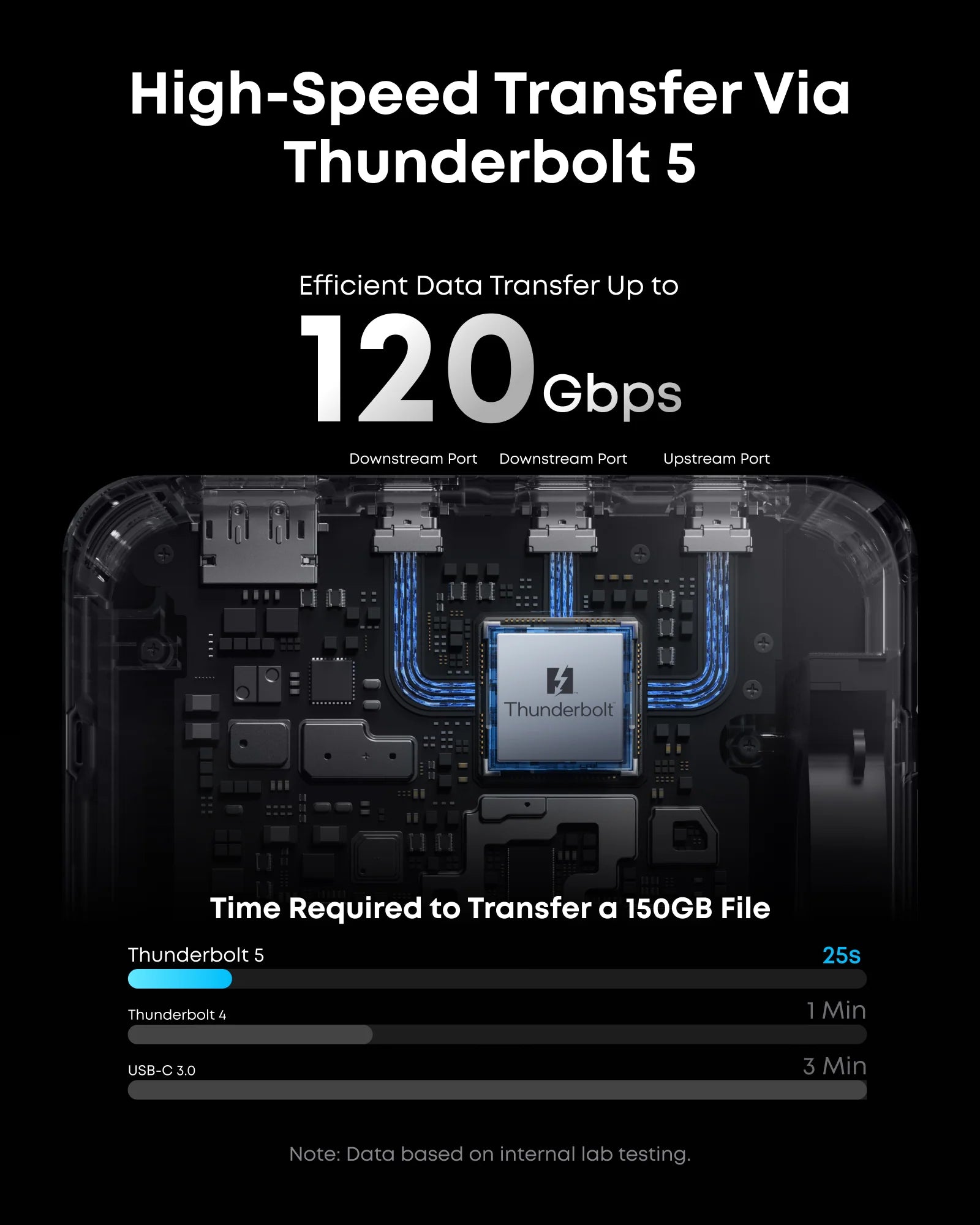

The Speed You Need for Large Files
Transfer massive files quickly—move a 150GB file in just 25 seconds with the Thunderbolt 5 port.

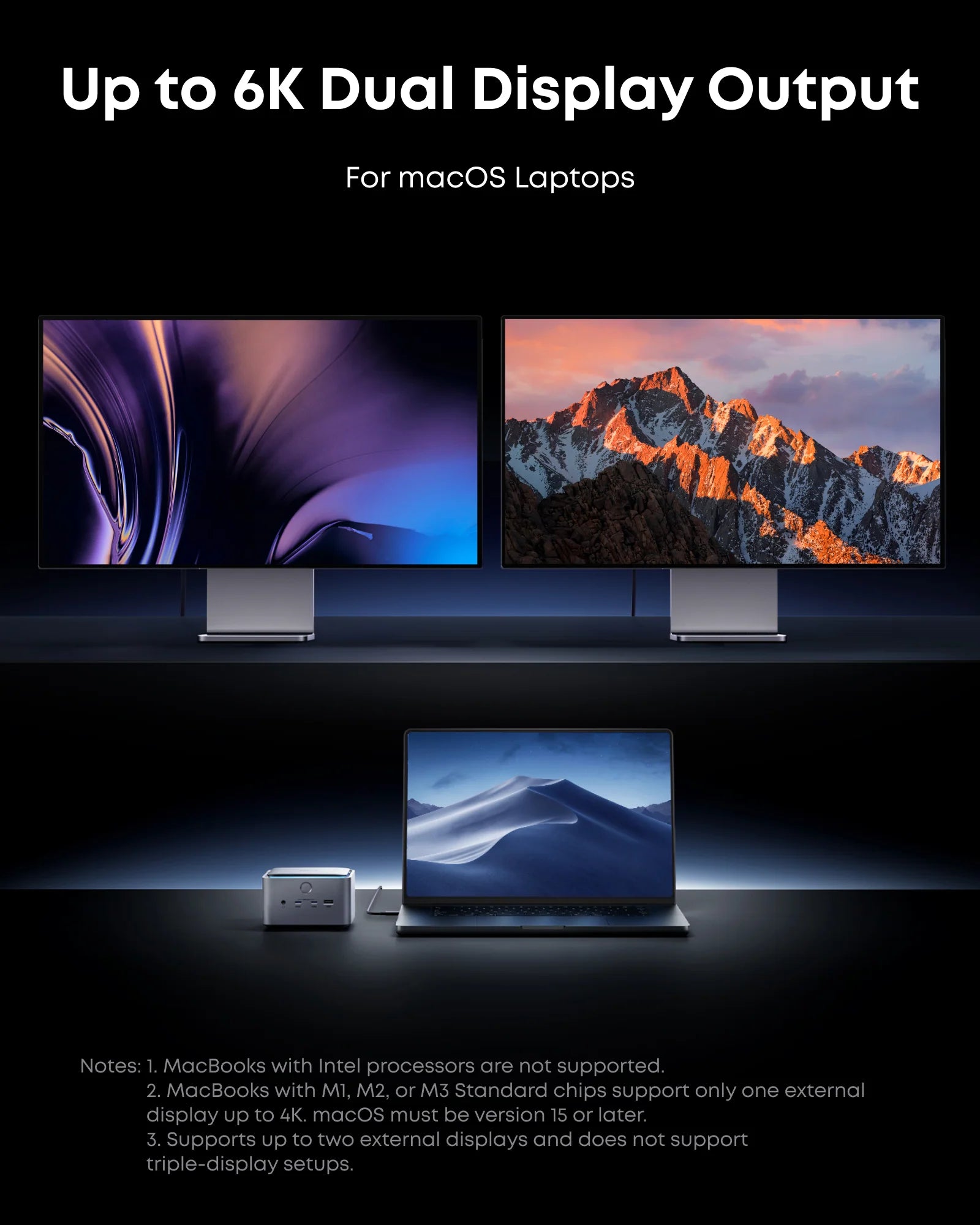

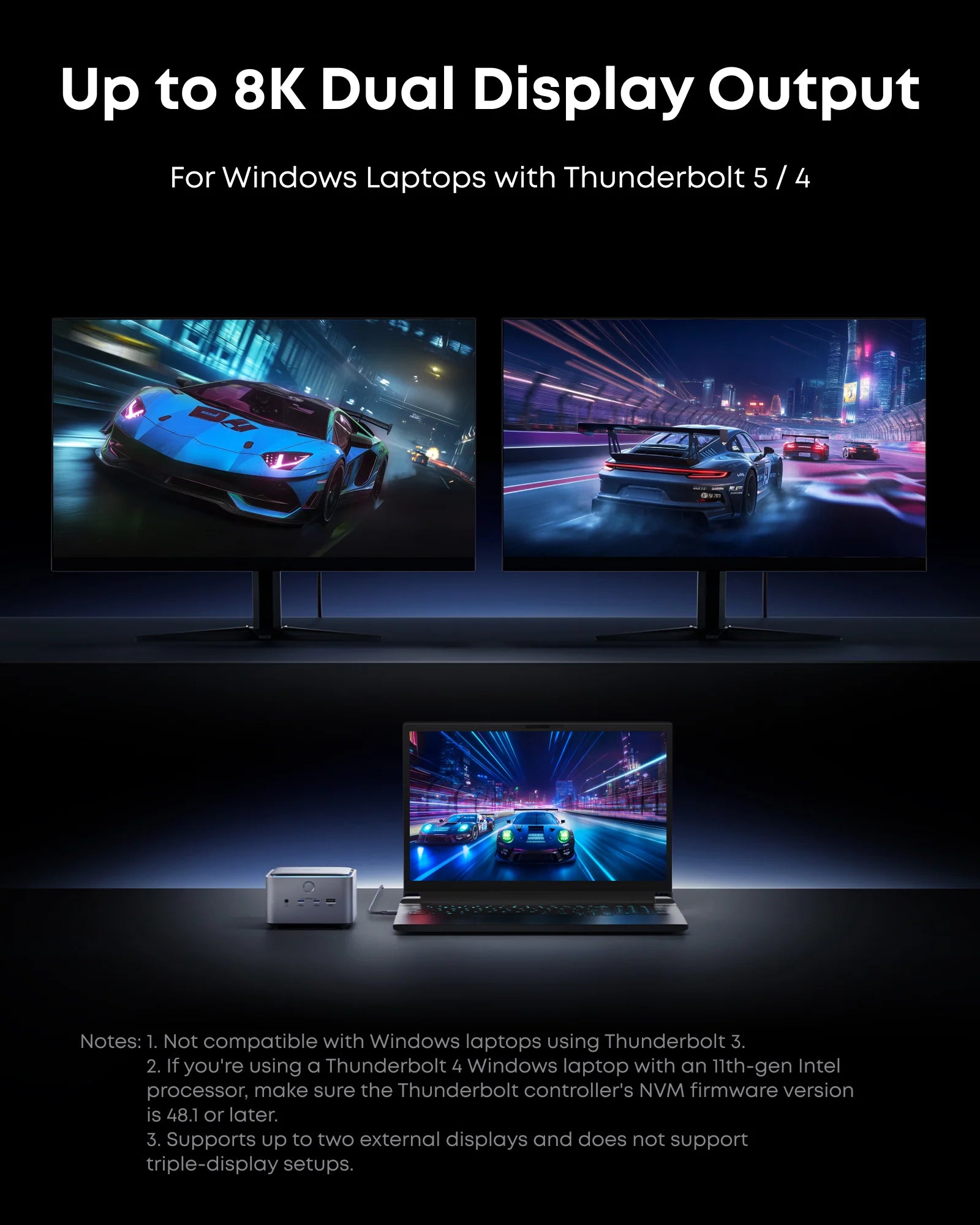

Dual Display Docking Station
Supports one HDMI or DisplayPort and two Thunderbolt 5 downstream video outputs. Delivers up to 8K@60Hz for a single display, or dual 8K@60Hz for Thunderbolt 5 Windows laptops.

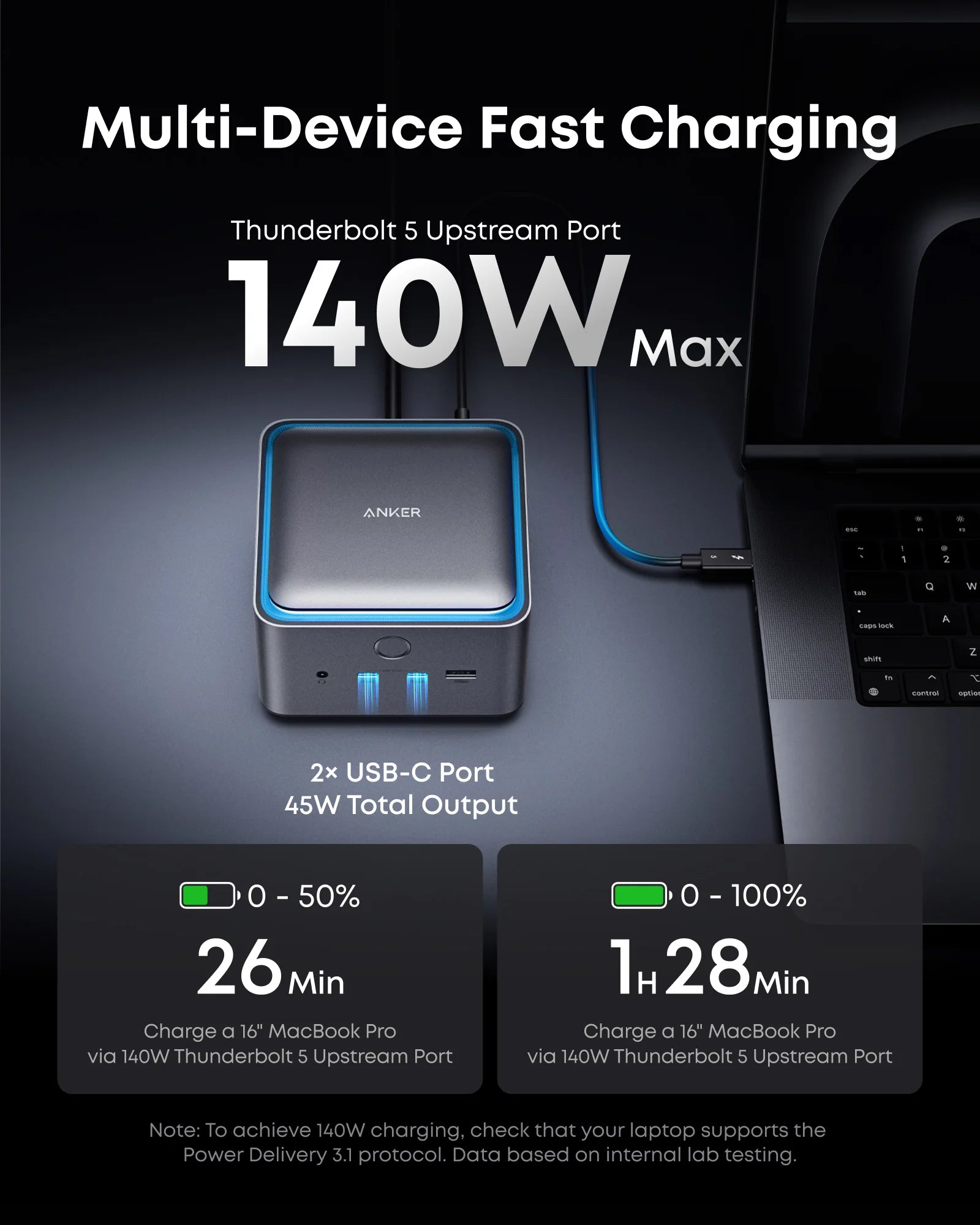

Fast Charge Multiple Devices
Power your devices efficiently with the powerful 140W max Thunderbolt 5 upstream port, supporting the PD 3.1 protocol for optimal charging. The front-facing dual USB-C ports share a total of 45W.
What You Get
Anker Prime Docking Station (14-in-1, 8K, Thunderbolt 5), 3.3 ft Thunderbolt 5 cable, 6 ft AC power cable, 24-month warranty, safety sheet with QR code for user manual, and our friendly customer service.
- Port Specification: 1 × Thunderbolt 5 upstream port, 140W Max 2 × Thunderbolt 5 downstream port,15W 3 × USB-A, 10Gbps 2 × USB-C, 10Gbps, 45W Shared 1 × HDMI 2.1 or 1 × DP 2.1,Select one port a time 1 × 2.5Gbps Ethernet 1 × Audio combo 1 × SD, 1 × TF, UHS-I
- Display Port (HDMI / HDR / HDCP): HDMI 2.1
- Data Transfer(Max): 10Gbps
- Compatibility: Windows 10 & 11, macOS 14.5 or later
