Model Number: A83B5
Anker Prime Docking Station (14-in-1, 8K, Thunderbolt 5)
Supreme Desktop Expansion for Peak Performance
14 Ports, Clear Displays
Features 14 versatile ports including USB-C, USB-A, HDMI 2.1 or DP 2.1, this docking station offers pristine display options for both Windows and Mac.
Cool Dock with LED Light
Transform your workspace with interactive blue LED lighting and a powerful cooling system, designed to maintain optimal performance.
Clean Desk Solution
Achieve a clean and organized desk with the all-in-one docking station, equipped with built-in power capabilities.
Connect All Devices
Ideal for the modern professional, this dock streamlines connectivity for a variety of devices with one compact solution.
Compatibility
System Types: Windows 10 / 11, macOS 15 or Later
Host Devices: Thunderbolt 5 / 4 Laptops
Note: This dock is not compatible with Thunderbolt 3 laptops or monitors—including those with Windows or Intel-based MacBooks—and does not support ChromeOS or Linux systems.
Notes:
1. The HDMI 2.1 port and DisplayPort 2.1 port cannot be used simultaneously.
2. The minimum macOS version required to use this Thunderbolt 5 dock is macOS 15 or later.
3. The front USB-C ports support charging and data transfer but do not support video output.
4. Windows laptops with USB-C ports that support DisplayPort Alt Mode can only connect to one external monitor. Apple Silicon MacBooks with M1 / M2 / M3 Standard chips support only one external display via Thunderbolt. MacBooks with M1 / M2 / M3 Pro or Max chips, and all M4 models, support dual displays. M4 MacBooks with Thunderbolt 5 do not support three displays over a single Thunderbolt 5 connection.
5.Very few laptops support connecting three external monitors to this docking station via two Thunderbolt downstream ports and either an HDMI or a DisplayPort.

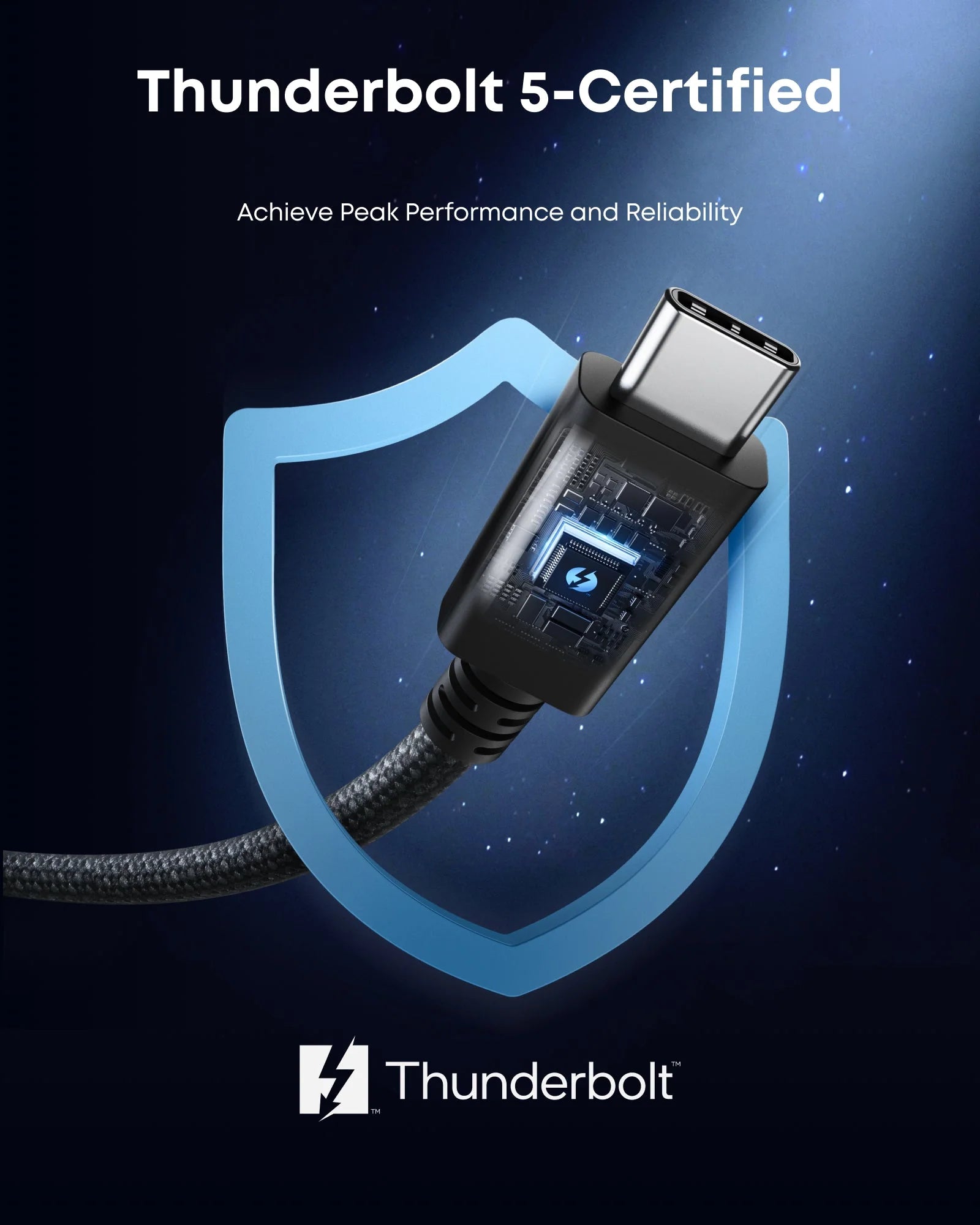

6. Use only the included Thunderbolt 5 cable or certified Thunderbolt 5 cables. Using uncertified or incompatible cables may cause incompatibility issues.
7. To ensure you achieve the described 2.5Gbps internet speed with this dock, use a Cat5e or Cat6 / Cat6a Ethernet cable no longer than 328 ft (100 m).
8. MacBooks with Apple Silicon chips do not support external GPUs through any docking station. This is a system-level limitation that prevents macOS from recognizing or using an external GPU, even if it is physically connected via a dock.
Specifications
Dimensions: 4.6 × 4.6 × 3.0 in / 116 × 116 × 75 mm
Weight: 38 oz / 1,086 g

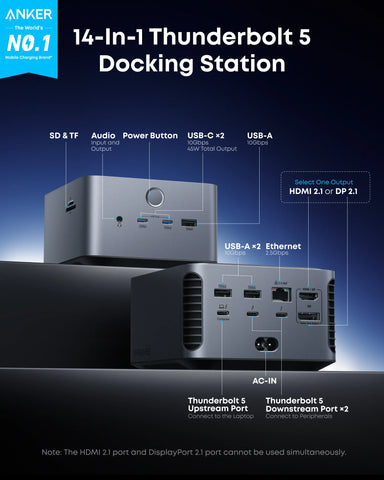

14-in-1 Thunderbolt 5 Dock
Equipped with a Thunderbolt 5 upstream port, two Thunderbolt 5 downstream ports, two USB-C ports, three USB-A ports, SD and TF card readers, an AC input, a 2.5Gbps Ethernet port, an audio jack, and an HDMI 2.1 or DisplayPort 2.1 port. It also includes an advanced active cooling system for optimal performance even under full load, preventing overheating.

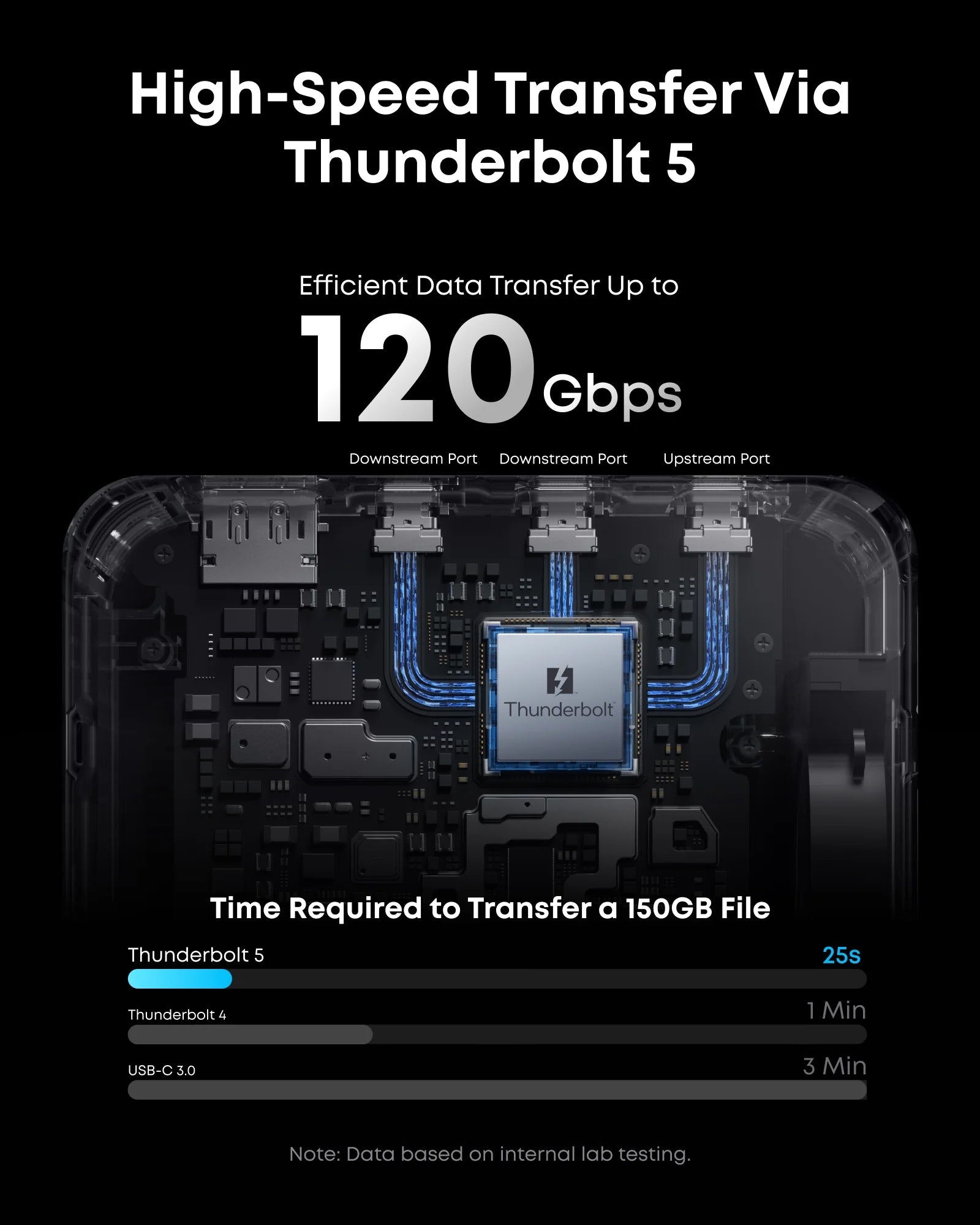

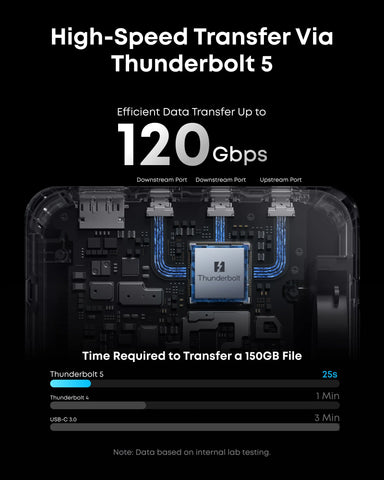

The Speed You Need for Large Files
Transfer massive files quickly—move a 150GB file in just 25 seconds with the Thunderbolt 5 port.

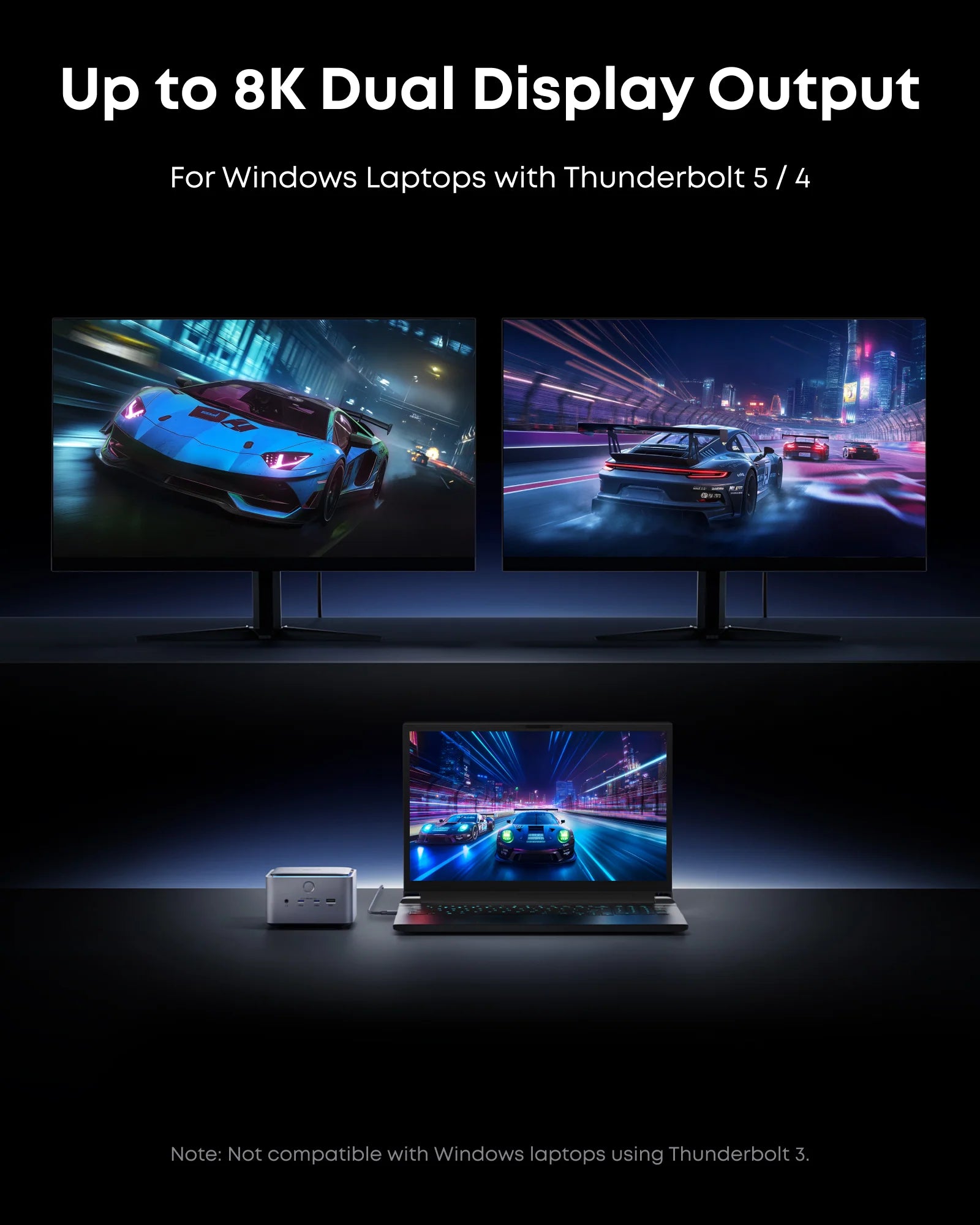

Dual Display Docking Station
Supports one HDMI or DisplayPort and two Thunderbolt 5 downstream video outputs. Delivers up to 8K@60Hz for a single display, or dual 8K@60Hz for Thunderbolt 5 Windows laptops.

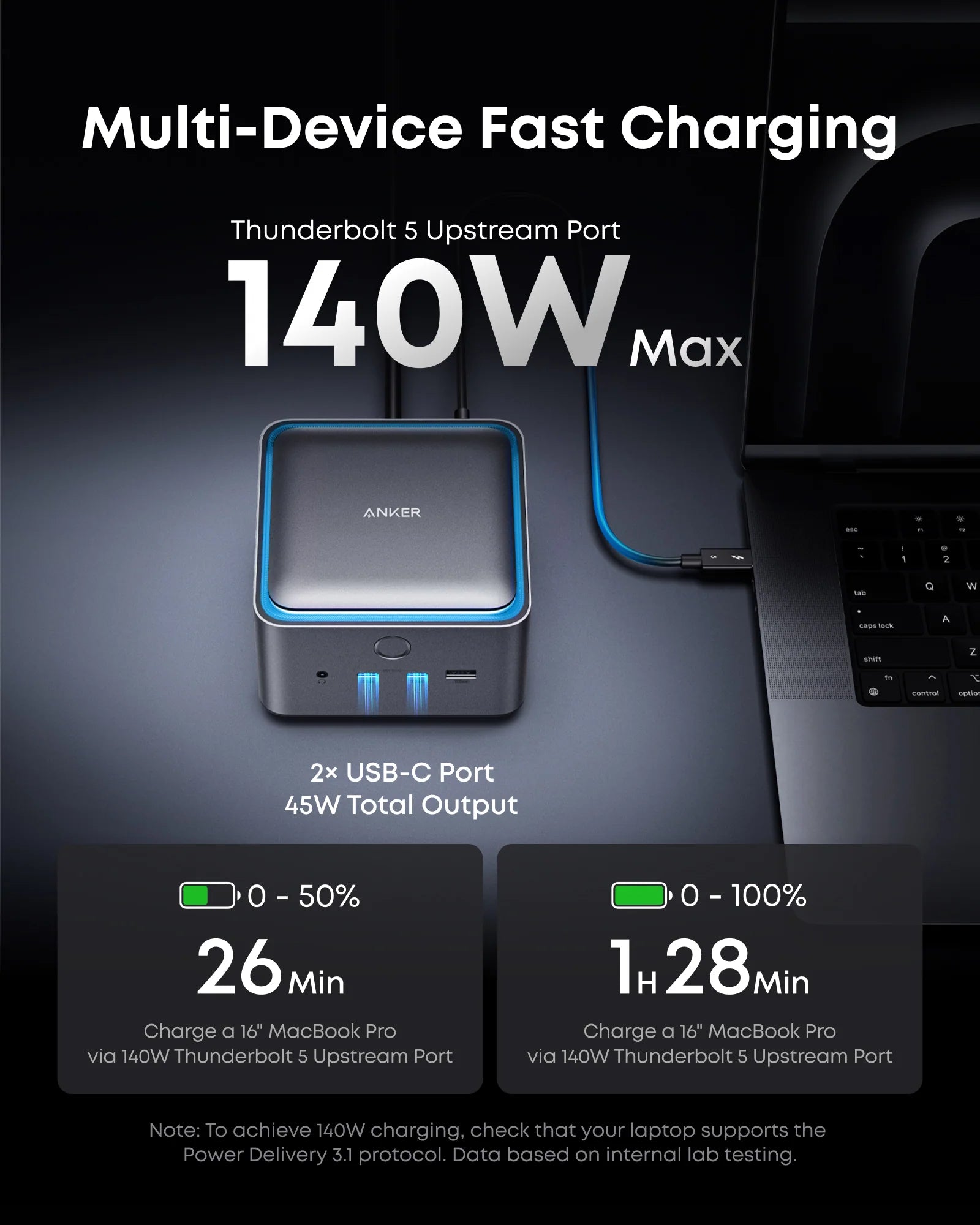

Fast Charge Multiple Devices
Power your devices efficiently with the powerful 140W max Thunderbolt 5 upstream port, supporting the PD 3.1 protocol for optimal charging. The front-facing dual USB-C ports share a total of 45W.
Peak Performance with Thunderbolt 5
Experience superior performance, enabling 80Gbps data transfers and 240W fast charging for powerful multi-display setups.
Lightning-Fast File Transfers
Move 5GB files in just 1 second with advanced 80Gbps transfer speeds.

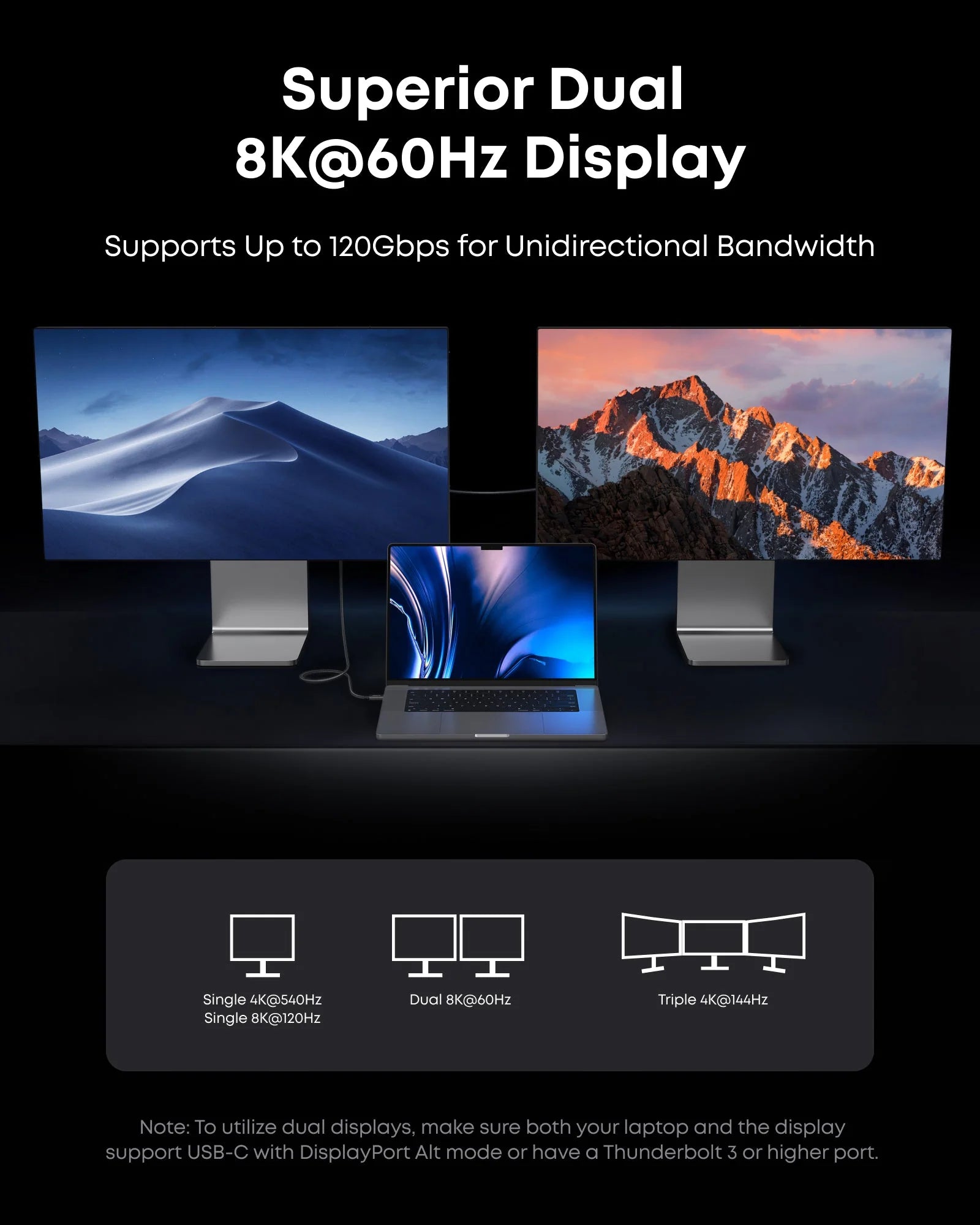

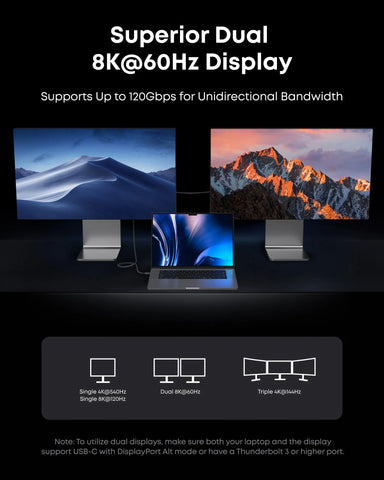

8K Display Capabilities
Support for dual 8K displays at 60Hz delivers stunning clarity and detail with up to 120Gbps bandwidth.
240W USB-C Charging
Charge a 16-inch MacBook Pro (M3 Pro) to 50% in just 26 minutes with ultra-fast 240W USB-C charging.

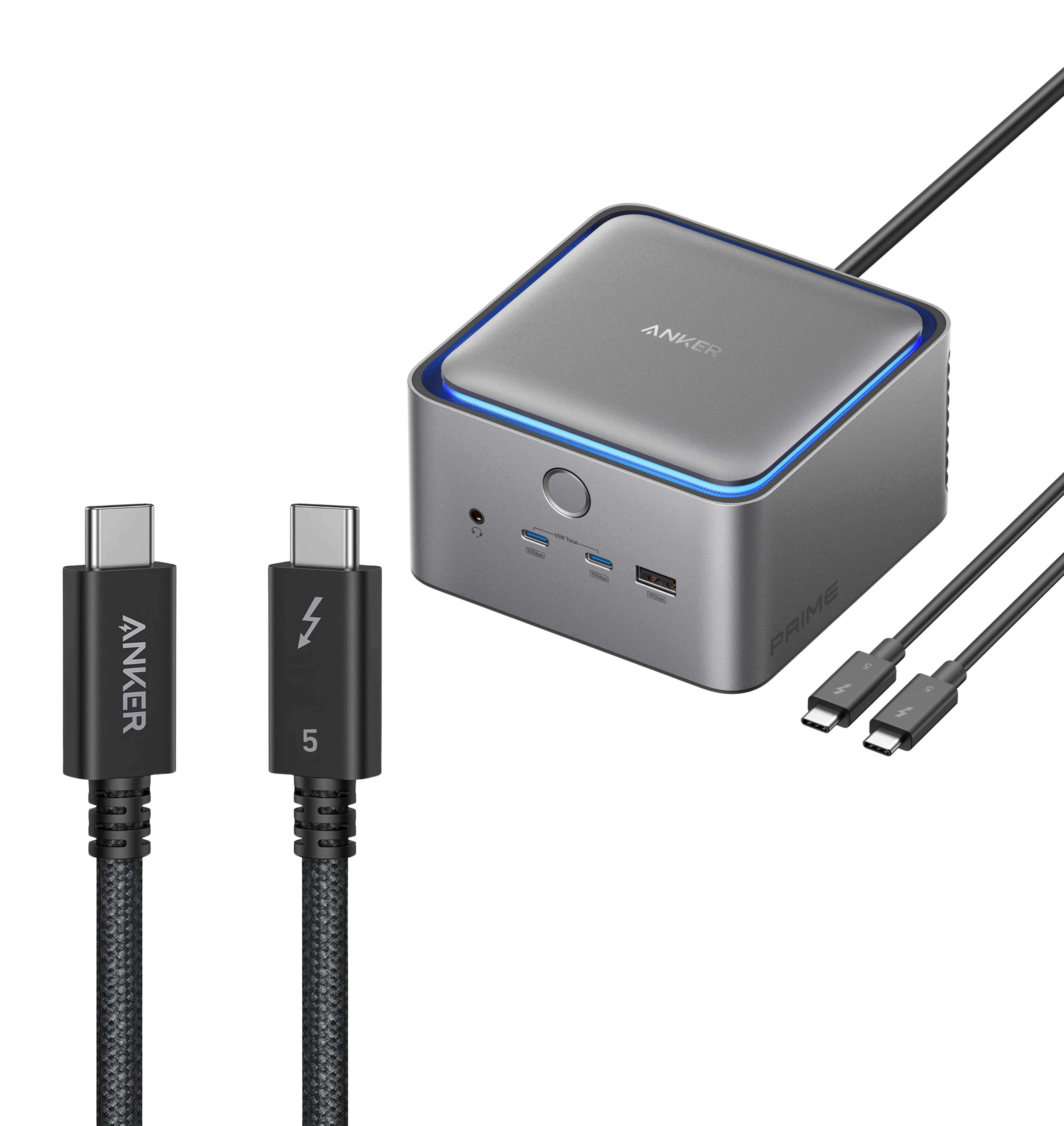

What You Get

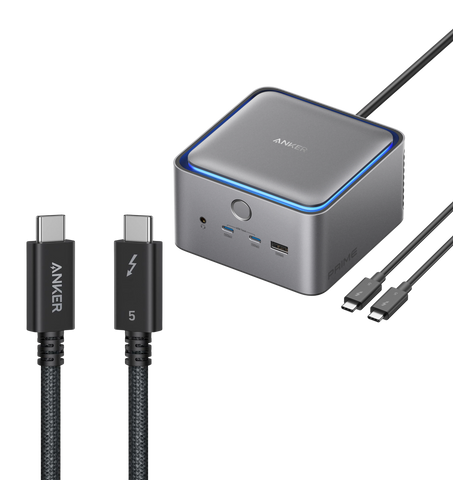

Anker Prime Docking Station (14-in-1, 8K, Thunderbolt 5), 3.3 ft Thunderbolt 5 cable, 6 ft AC power cable, Anker Prime Thunderbolt 5 Cable (3.3 ft, 80Gbps, 240W, Free Gift), 24-month warranty, safety sheet with QR code for user manual, and our friendly customer service.
Note: The free gift discount cannot be combined with other promotion.
