Model Number: A8395

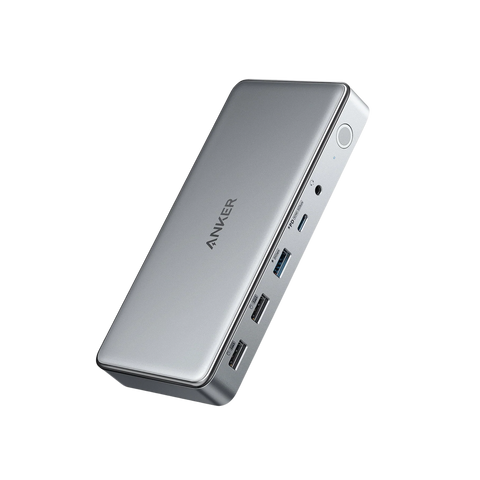

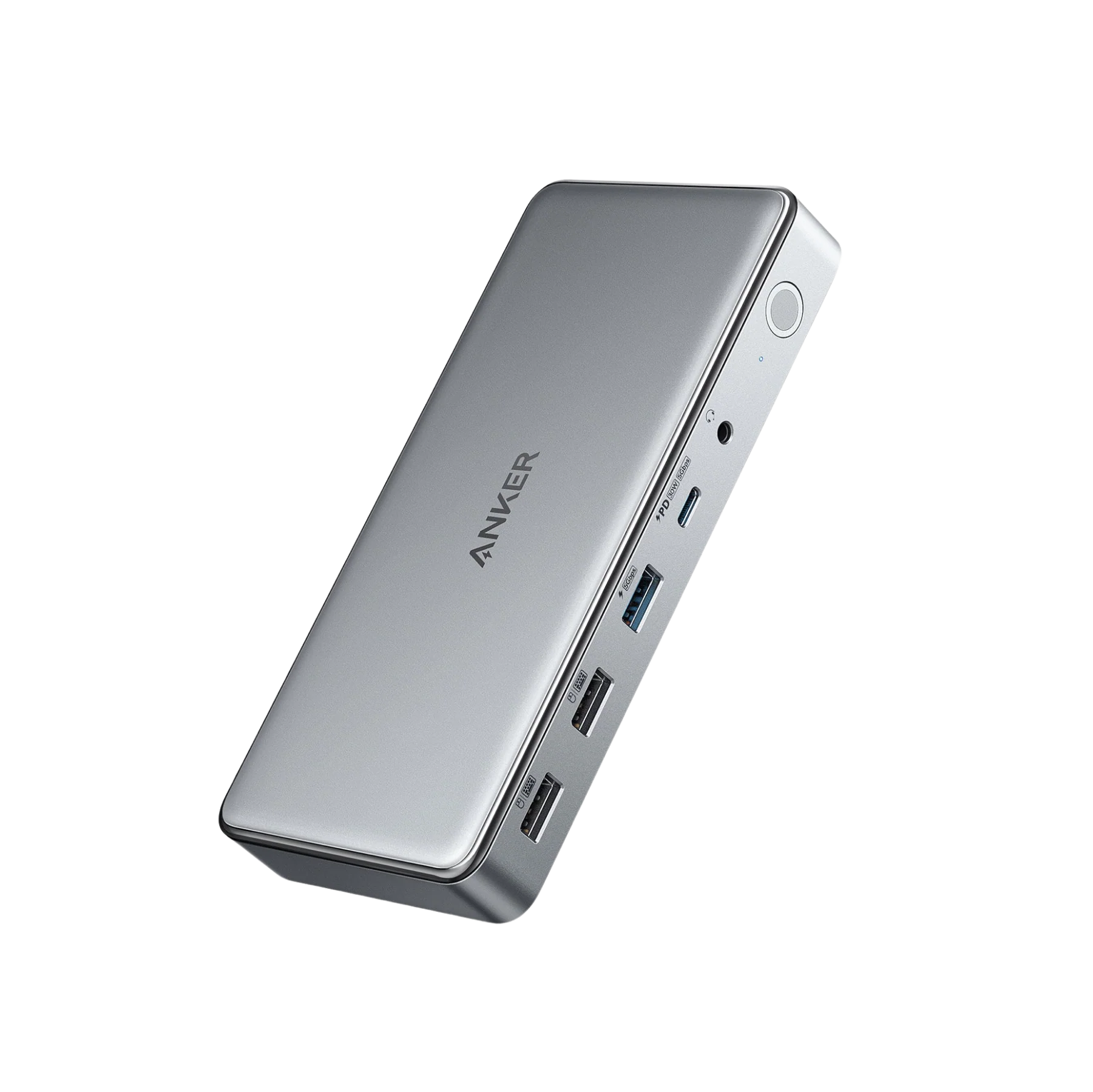

Anker 563 USB-C Docking Station (10-in-1)
Unlock Triple Display for M1 MacBooks

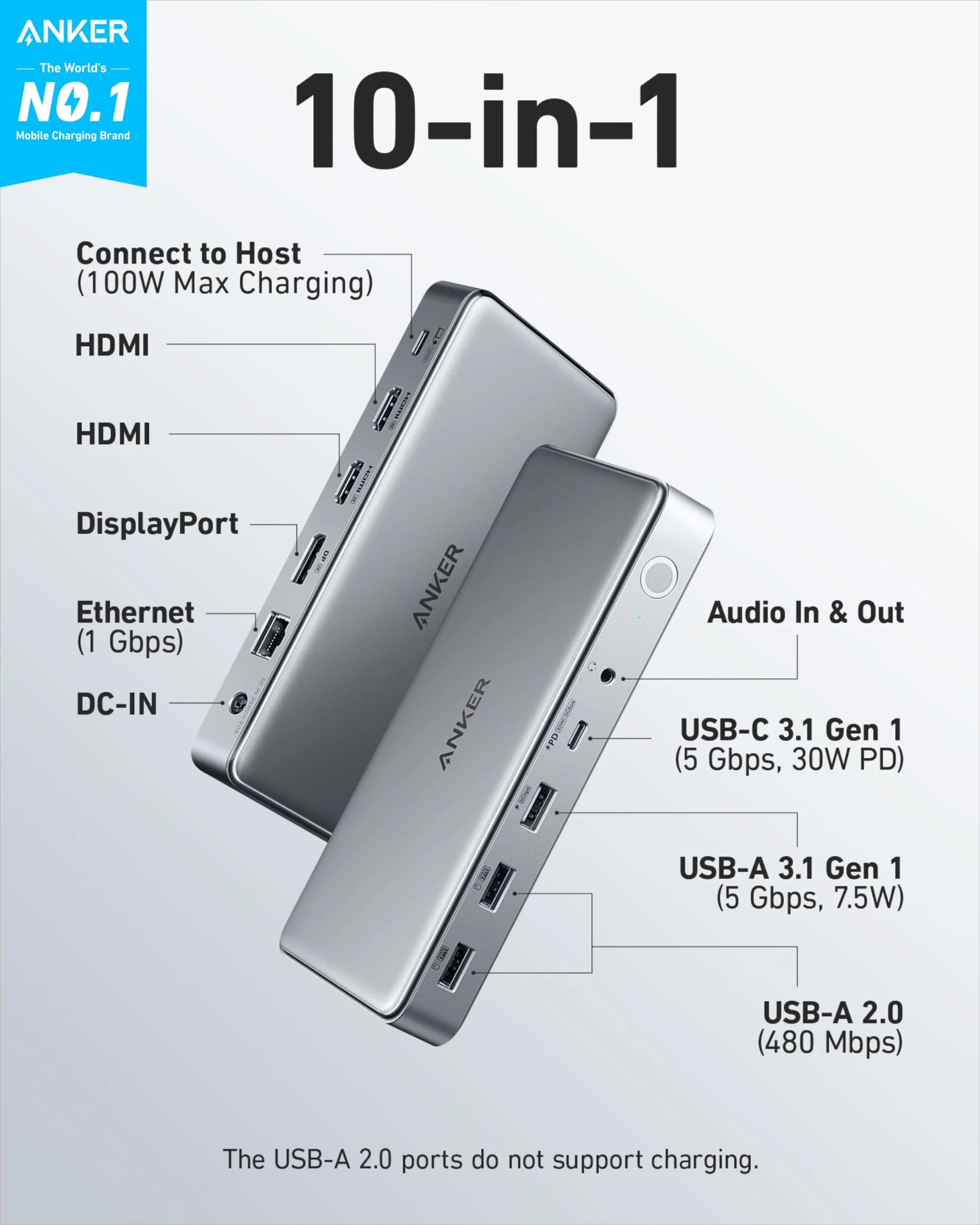

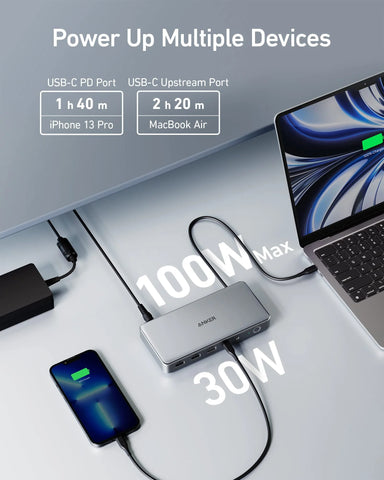

- Port Specification: 1 × PD IN Charging for laptopUp to 100W Dynamic Power 1 × 4K HDMI 1 × 2K HDMI 1 × 2K DP 1 × USB A 3.1 Gen 1(5Gbps, 5V / 0.9A) 2 × USB A 2.0(480Mbps, 5V / 0.5A) 1 × USB C 3.1 Gen 1(5Gbps, 30W)1 × Ethernet port1Gbps1 × Audio3.5mm (Combo Audio in and out 96KHz, 24bit)
- Display Port (HDMI / HDR / HDCP): HDMI 2.0 / N / N

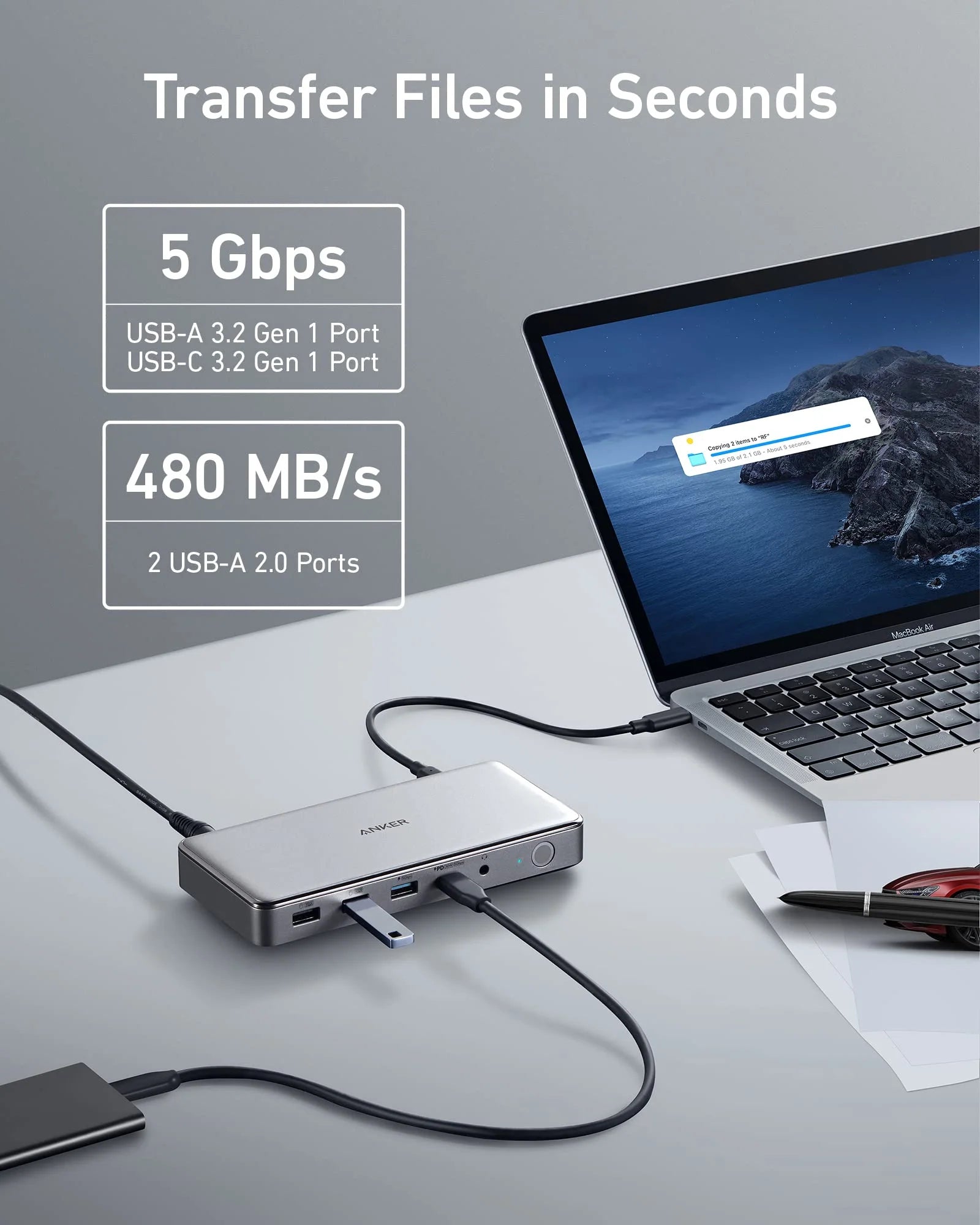

- Data Transfer(Max): 5Gbps/ 480 Mbps × 2
- Compatibility: macOS 10.14 or later, Windows 7 / 8 / 10 / 11
1. What should I do if I experience display issues when using the 2K DisplayPort with macOS 13?
Please update the DisplayLink software to DisplayLink Manager V1.8 via the DisplayLink official website: https://www.synaptics.com/products/displaylink-graphics/downloads/macos
2. After updating to macOS Ventura, my MacBook Air cannot detect the dock, and the function port does not work.
The macOS Ventura has a new authorization consent option. If users do not check this option, the dock/hub will not be able to connect properly. Please follow the steps below to restore settings: Privacy & Security > Allow accessories to connect.
3. Why are the 2K ports (HDMI/DisplayPort) not working?

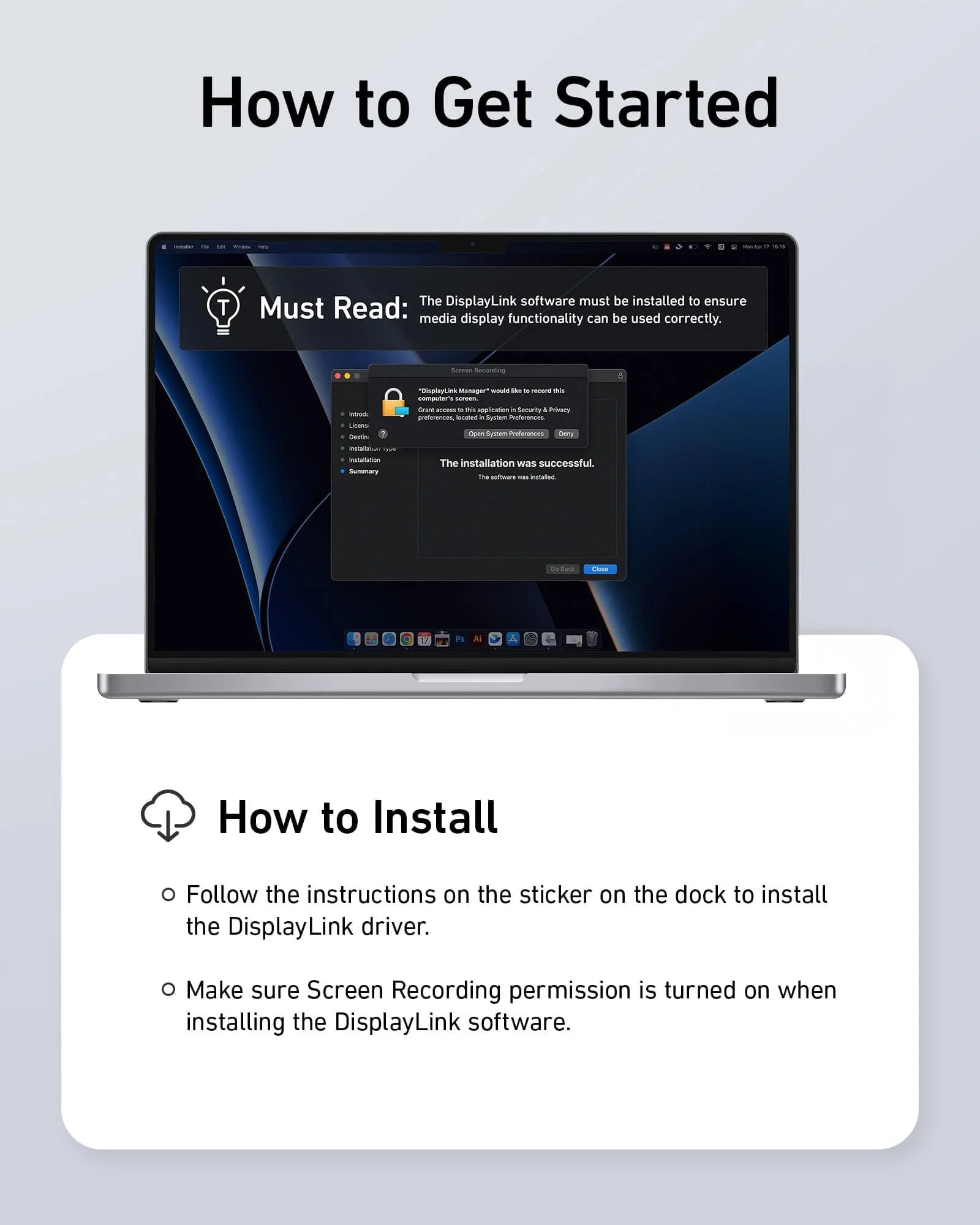

The Displaylink needs to be installed, and Screen Recording permission needs to be turned on when the DisplayLink software is installed. Otherwise, the 2K HDMI port and 2K DisplayPort can not be used normally. This permission is required to ensure normal port functionality; it will not be used for other purposes, and your privacy will be secured.
